Description
Condition: New, in crates
Description:

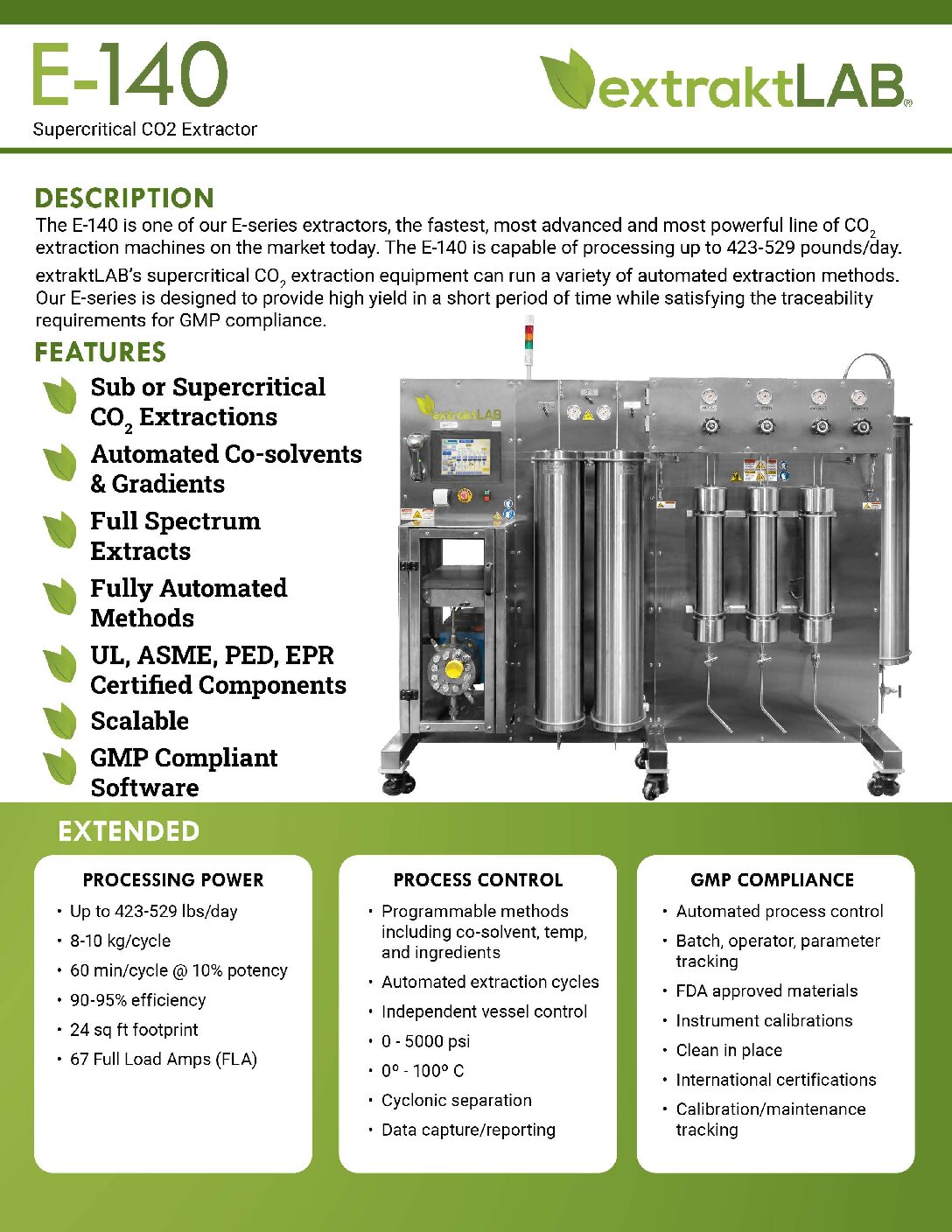

* Sub or Supercritical CO2 Extractions
* Automated Co-solvents & Gradients
* Full Spectrum Extracts
* Fully Automated Methods
* UL, ASME, PED, EPR Certified Components
* Scalable
* GMP Compliant
Specs:
PROCESSING POWER:
Up to 423-529 pounds (192-240 kg) per day; 8-10 kg per cycle; 60 min per cycle @ 10% potency; 90-95% efficiency; 24 sq ft footprint; 67 Full Load Amps (FLA)
GMP COMPLIANCE:
Automated process control; Batch, operator, parameter tracking; FDA approved materials; Instrument calibrations; Clean in place; International certifications; Calibration/maintenance tracking
PROCESSING CONTROL:
Programmable methods including co-solvent, temp, and ingredients; Automated extraction cycles; Independent vessel control; 0-5000 psi; 0-100ºC; Cyclonic separation; Data capture/reporting
General Specifications:
Dimensions (inches) L99″ x W34″ x H72″
Footprint (square feet) 24
Unit Weight (pounds) 4300
Sound Pressure (db) <50 CERTIFICATIONS, Listed: UL 508A, CE, PED REGULATORY COMPLIANCE: 21 CFR Part 117, 211, 177 and Health Canada equivalents, P.E. stamped according to ASME DIV II VII-2 PED compliant, CE marked, notified body Lloyd’s Register, CRN number ALSO AVAILABLE, SOLD SEPARATELY: GMP Documentation Package; Commissioning and Training Package; Maintenance Package (12 Months) Specs 2: Chiller, 5hp (230V) 3ph Extractor Chiller E-110/E-140/E-180 5 HP Chiller for the E-140/E-180 extractor. Air cooled chiller with set point range of 20° to 80° F (-6° to 26.6°C) Supports up to two E-140 extractors, or one E-180 extractor. Also Required: #10-1031 I Chiller Connection Kit Electrical: (V /Ph/Hz) 230V, 3 phase, 60Hz FLA: 35.2 Amps Pump type: 1.5 HP centrifugal pump, 12.3 GPM@35 PSI Reservoir Capacity: 11 gallons/ 41.6 Liters Dimensions: 48″ x 35″x 61″ (LxWxH) Cooling Capacity: 5.1 Tons / 61,200 BTU/hr / 17. 9 kW @ 1 0C process, 35C ambient temperature.
